Projects
DMU Racing Electric 2024 CAR
Under my leadership, the DMU Racing Formula Student team developed the university's first electric car to compete in the Formula Student 2024 competition.
DMU Racing Petrol 2022 Car
The DMU Racing Formula Student team’s petrol car finished 6th out of 120 teams in the Formula Student 2022 competition.
Formula Student Battery Pack
The battery pack consists of 900 cells arranged in 6 battery segments connected in series, producing a total of 360VDC and 6kW of power. It includes all integrated safety circuits and a Battery Management System (BMS).
Formula Student Battery Segments
The battery segments are configured as 15 series and 8 parallel (15s8p), totaling 120 cells and providing 54VDC. They are constructed from fireproof and waterproof materials.

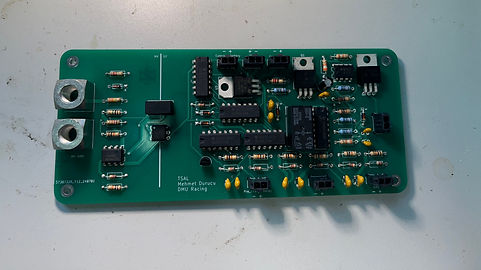

Formula Student Tractive System Active Light
The control circuit uses green and red lights to indicate voltage levels. It displays red if the voltage between the AIRs exceeds 60VDC, if the AIRs close, or if the precharge relay is closed, signaling that high voltage (HV) is active. Otherwise, it shows green.

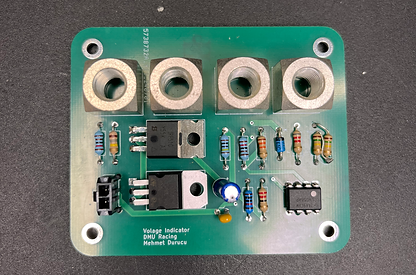

Formula Student High Voltage Indicator
The control circuit indicates high voltage in the battery pack. If the voltage exceeds 60VDC, a red light will be displayed on the battery pack.
Formula Student Ready-to-Drive Mode Ciruit
A small ECU is being developed for the DMU Racing 2024 race car to activate the Tractive system and start the electric motor and powertrain.
Formula Student Wiring Harness
Designed and assembled both high and low voltage wiring harnesses for the DMU Racing Electric Formula Student team.
Formula Student DC-DC Converter
A DC-DC converter steps down 360VDC to 24VDC to supply energy for charging the low-voltage battery of the racing car.
Formula Student Electric Powertrain System
The electric powertrain system for the DMU Racing 2025 race car includes an inverter, motor, and high-voltage (HV) battery pack. These components are connected to a dynamometer (dyno) to optimize performance and ensure improvements in efficiency and output.
Multimeter
Designed a multimeter capable of measuring both DC and AC voltage, with an integrated signal generator.

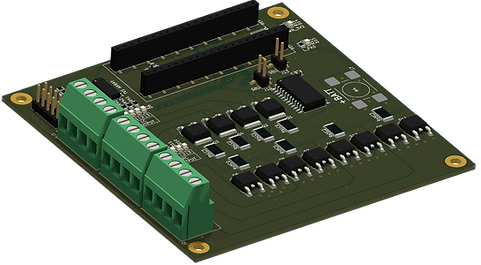

Power DistrubutionModule
A Power Distribution Module (PDM) is a smart fuse relay box that controls power to devices like fans and pumps without mechanical contacts or physical fuses.
